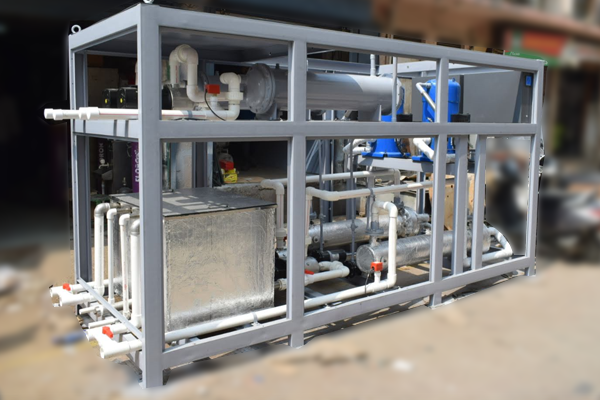

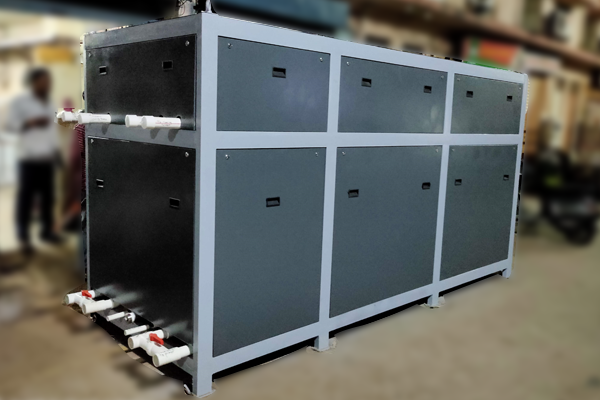

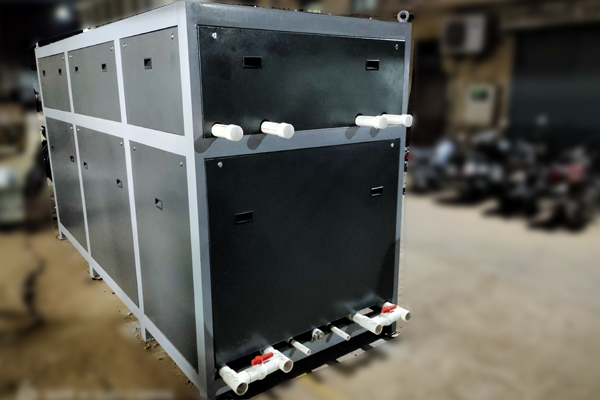

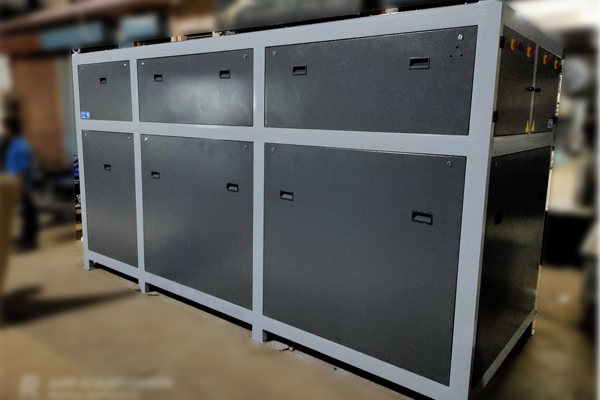

 50 TR Industrial Process Chiller

30 TR Industrial Process Chiller
50 tr chiller machine manufacturers in india, gujarat, ahmedabad

Technical Data Sheet

SR.NO DESCRIPTION
1 REQUIRE SOFT WATER
  • PH :7  TO 8.5
  • TDS: 200 PPM MAX,
  • HARDNESS : 50 PPM
2 REQUIRED CHILLER CAPACITY 50 TR
3 AMBIENT TEMPERATURE 20°C to 45°C
4 WATER INLET TEMPERATURE 35 ˚C
5 REQUIRED WATER TEMPERATURE 15˚C
6 REQUIRED FLOW RATE OF WATER (LPH) 6000 LPH
7 PRODUCT POOL DOWN TIME 1 HR
8 PROCESS TYPE COOLING
9 COMPRESSOR
  • DANFOSS MAKE SY 380
  • 26 KW/50 HZ/400 volte
10 COMPRESSOR TYPE SCROLL
11 EVAPORATOR (CHILLER)  SHELL & TUBE
12 CONDENSER SHELL & TUBE
13 CONDENSING PUMP CROMPTON OR EQUILANT /3 PHASE/400 V/50 HZ
14 CICULATION PUMP CROMPTON OR EQUILANT /3 PHASE/400 V/50 HZ
15 CONTROL INSTRUMENT OF SYSTEM
  • LOW PRESSURE SWITCH
  • HIGH PRESSURE SWITCH
  • FLOW SWITCH
  • ANTI FREEZE
  • WATER LEVAL SWITCH
16 ELECTRIC CONTROLL PENAL
  • MPCB
  • SINGLE PHASE PRIVINDER
  • TEMPRATURE CONTROLLER
17 REFRIGERANT R 22
18 ELECTRIC LOAD 64 KW ± 10%
19 REFRIGRATION INTERNAL LINE COPPER TUBE
20 WATER CIRCULATION LINE UPVC
