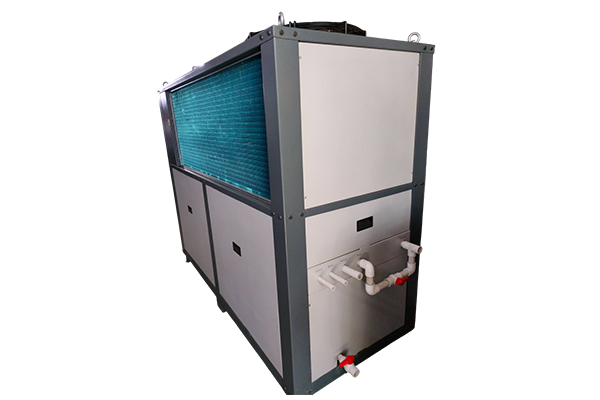

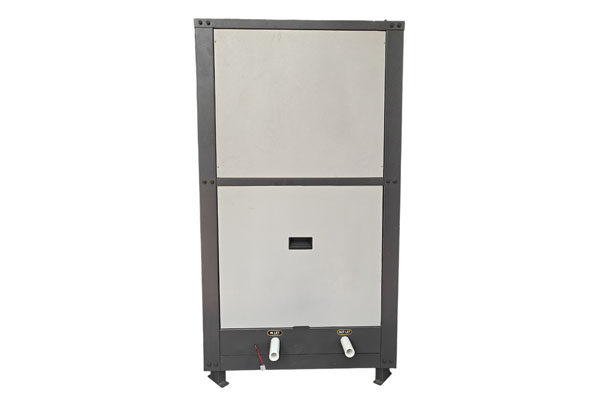

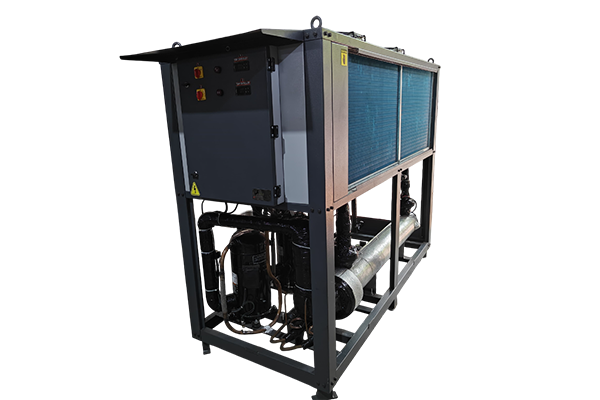

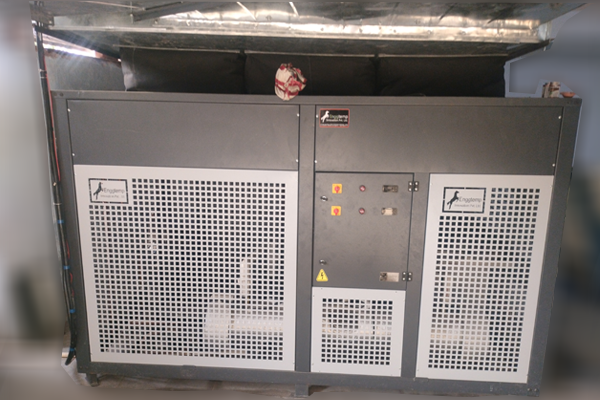

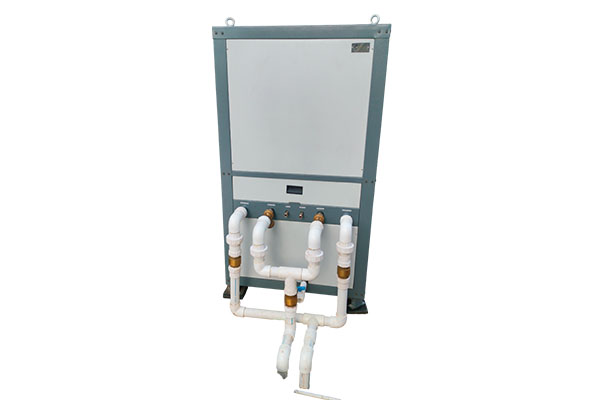

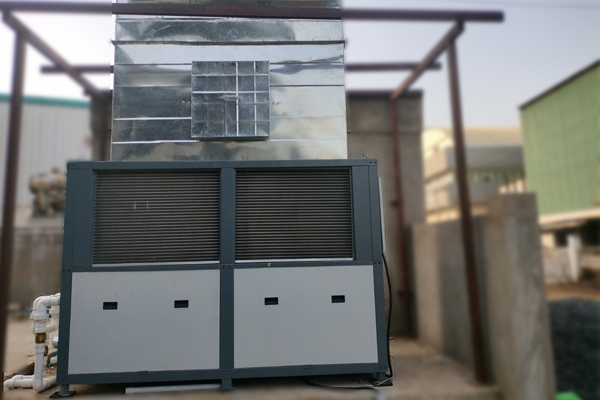

 20 TR Industrial Process Chiller

20 TR Industrial Process Chiller
manufacturers and supplier of 20 tr ro chiller, 20 tr air cooled chiller
20 tr water chiller system and 20 tr chilling plant. based in Ahmedabad, Gujarat, India
20 tr chiller machine manufacturers in india, gujarat, ahmedabad

Technical Data Sheet

SR.NO DESCRIPTION
1 FLUID TO BE CHILLED RO WATER
2 REQUIRED CHILLER CAPACITY 20 TR
3 AMBIENT TEMPERATURE 20°C to 45°C
4 WATER INLET TEMPERATURE 35 ˚C
5 REQUIRED WATER TEMPERATURE 10˚C
6 REQUIRED FLOW RATE OF WATER (LPH) 2000 LPH
7 PRODUCT POOL DOWN TIME 1 HR
8 PROCESS TYPE COOLING
9 COMPRESSOR EMERSION MAKE ZR 310
13 KW/50 HZ/400 volte
10 COMPRESSOR TYPE SCROLL
11 EVAPORATOR (CHILLER) SHELL & TUBE
12 CONDENSER ALLUMINUM FIN AND COPPER TUBE CONDENSER
13 CONDENSING FAN AXIL FAN
14 CICULATION PUMP LUBI/CRI/ CROMPTON
15 CONTROL INSTRUMENT OF SYSTEM LOW PRESSURE SWITCH
HIGH PRESSURE SWITCH
FILTER DRIEAR
THERMOSTATIK EXPANTION VALVE
FLOW SWITCH
ANTI FREZZE
WATER LAVEL TRIP
16 ELECTRIC CONTROLL PENAL MPCB
SINGLE PHASE PRIVINDER
O/L RELLAY
TEMPRATURE CONTROLLER
17 REFRIGERANT R 22
18 ELECTRIC LOAD 17 KW
