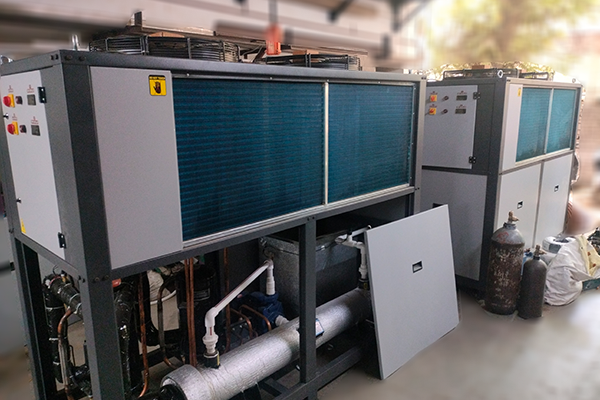

 15 TR Industrial Process Chiller

15 TR Industrial Process Chiller
15 TR Industrial Process Chiller
15 TR Industrial Process Chiller
15 TR Industrial Process Chiller
15 TR Industrial Process Chiller
15 tr chiller machine manufacturers in india, gujarat, ahmedabad
15 tr air cooled chiller, 15 tr water chiller system, 15 tr chilling plant
Manufacturer and supplier of 15 tr water chiller, 15 tr chiller system
15 tr chilling plant price in Ahmedabad, Mumbai, Pune, Jaipur, Jodhpur
15 tr chiller, air chillers, 15 tr water chiller, 15 tr chilling plant, 15 tr chiller system
air cooled chillers, 15 tr chiller machine, 15 tr air cooled chiller, air water chiller system
manufacturers and supplier of 15 tr ro chiller, 15 tr air cooled chiller, 15 tr water chiller system

Technical Data Sheet

Sr. No. DESCRIPTION
1 REQUIRED CHILLER CAPACITY 15 TR.
2 AMBIENT TEMPERATURE 20°C to 45°C
3 WATER TYPE R O WATER
  TEMPRATURE 6 DEG C'
4 REQUIRED WATER TEMPERATURE 10°C
5 REQUIRED FLOW RATE OF WATER (LPH) 1400 LPH
6 PRODUCT POOL DOWN TIME 1 Hr.
7 PROCESS TYPE COOLING
8 COMPRESSOR MAKE: EMERSON COPLAND SCROLL MODEL ZR 190
9 COMPRESSOR POWER INPUT 11 KW/Hr. 440V / 50Hz / 3Ph
10 COMPRESSOR TYPE SCROLL COMPRESSOR

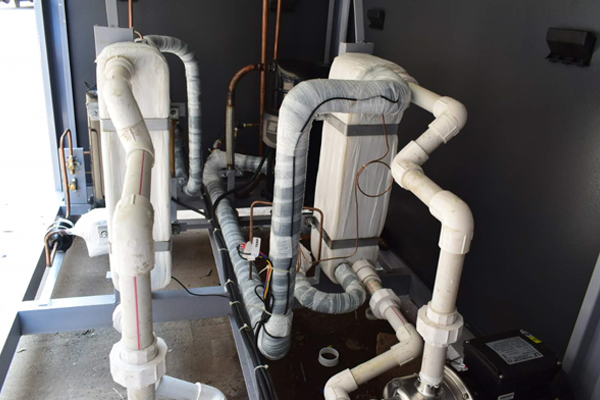

11 EVAPORATOR (CHILLER) SHELL AND TUBE
12 CONDENSER ALLUMINUM FIN CONDENSER AXIL FAN
14       CHILLER PUMP       LUBI/CRI/ CROMPTON
HIGH/LOW PRESSURE SWITCH,
THERMOSTATIC EXPANSION VALVE (DANFOSS)
FILTER DRIER (DANFOSS)
15             CONTROL INSTRUMENT OF THE SYSTEM           SINGLE PHASE PREVENTER RELAY
DIGITAL TEMPERATURE INDICATOR &
TEMPERATURE CONTROLLER
SIGHT GLASS, FLOW SWITCH
ENGGTEMP / STANDARD FACILETED
AND PROTECTION AGAINST
SINGLE PHASING PREVENTOR RELAY

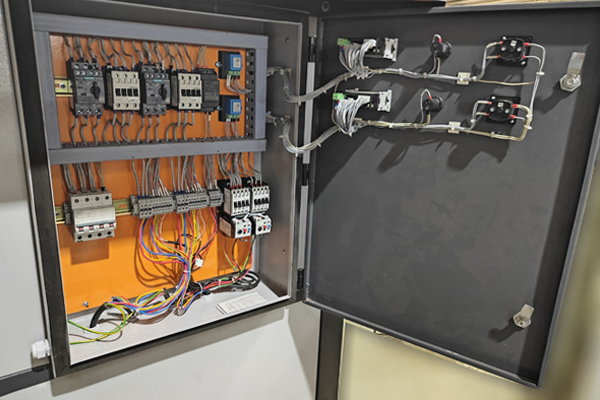

16       ELECTRIC CONTROL PANEL       MCB
REVERSE PHASING
DIGITAL TEMPERATURE INDICATOR
DEALY TIMER
17 CONNECTED POWER LOAD  14 KW
